ASCII and Unicode quotation marks

by Markus Kuhn

Summary: Please do not use the ASCII grave accent (0x60) as
a left quotation mark together with the ASCII apostrophe (0x27) as the
corresponding right quotation mark (as in `quote’). Your
text will otherwise appear rather strange with most modern fonts
(e.g., on Windows and Mac systems). Only old X Window System fonts and
some old video terminals show ASCII 0x60/0x27 as left and right
quotation marks, while most modern systems follow the ISO and Unicode
standards instead. If you can use only ASCII’s typewriter characters,
then use the apostrophe character (0x27) as both the left and right
quotation mark (as in ‘quote’). If you can use Unicode
characters, nice directional quotation marks are available in the form
of characters U+2018, U+2019, U+201C, and U+201D (as in
‘quote’ or “quote”).

Background

The Unicode and ISO 10646
standards define the following characters:

ASCII and ISO 8859 were only designed to support the very
restricted typographic style available to typewriter users. The two
ASCII characters

0x22	QUOTATION MARK
0x27	APOSTROPHE

are supposed to represent the neutral (vertical) glyphs commonly
used on typewriters. They should not be used as
directional quotation marks.

ISO 8859 and Unicode fonts are supposed to show the two accent
characters

0x60	GRAVE ACCENT
0xB4	ACUTE ACCENT

as mutually symmetric shapes.

The problem

Unfortunately, the X Window System fonts contained for a long time
the following mutually symmetric glyphs:

0x27	APOSTROPHE
0x60	GRAVE ACCENT

These shapes were even sanctioned by an early US version of the ISO
646 standard (ANSI X3.4, also known as ASCII), which defined 0x27 as
“apostrophe (closing single quotation mark; acute accent)”, but they
should already have been changed when the fonts were extended to cover
ISO 8859-1, which added a separate acute accent at 0xB4. One obviously
cannot have both 0x27/0x60 and 0x60/0xB4 as mutually symmetric glyph
pairs and have at the same time a different shape for 0x27 and 0xB4.
Since 0x60/0xB4 were defined to be accents by the modern standards,
their symmetric shape got priority, except that this had not been
fixed in the X fonts until 2004 (somewhat earlier in the versions that
come with XFree86).

The old X fonts encouraged some authors of Unix software and
documentation to abuse 0x60 together with 0x27 as directional
quotation marks. This practice looked somewhat acceptable like

quotation

if displayed with old X fonts, but it looked rather ugly like

quotation

in most other modern display environments (e.g., with the correctly
designed Windows and Mac TrueType fonts, but also on many classic
1970s/1980s video terminals, such as those by Siemens/Nixdorf and many
other manufacturers).

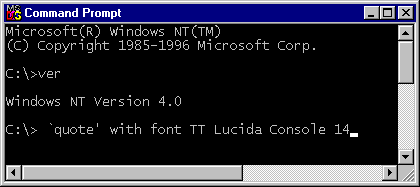

For example, 0x60 and 0x27 look under Windows NT 4.0 with the
TrueType font Lucida Console (size 14) like this:

Unicode and ISO 10646 make a very clear distinction between the
undirected typewriter-style ASCII single quotation mark and apostrophe
U+0027 as in

quotation

and the typographic directed quotation marks U+2018 and U+2019 as
in

quotation

Unicode 2.1 explicitly says that U+2019 is the preferred
punctuation apostrophe, as in “We’ve been here before.”
The Unicode standard also notes:

“For historical reasons, U+0027 is a particularly
overloaded character. In ASCII it is used to represent a punctuation
mark (such as right single quotation mark, left single quotation mark,
apostrophe punctuation, vertical line, or prime) or a modifier letter
(such as apostrophe modifier or acute accent.) (Punctuation marks
generally break words; modifier letters generally are considered part
of a word.) In many systems it is always represented as a straight
vertical line and can never represent a curly apostrophe or right
quotation mark.”

What to do?

If you are the author of some Unix software, then please check,
whether you use the ASCII character 0x60 (`) as a left
quotation mark as in `quote’. Change it such that you use
instead the character 0x27 (‘) on both sides, as in
‘quote’. If you work in an environment where the UTF-8
encoding is already used everywhere (e.g., Plan9 and most modern
GNU/Linux installations), you could even decide to use proper
directional quotation marks, as in ‘quote’ or
“quote”.

Check your source code directories with

  grep \` *

to find out, where modifications are necessary. Then use (with
proper care!) something like

  perl -pi.bak -e "s/\`/'/g;" file1 file2 ...

to make the necessary substitutions automatically, or make the
edits manually instead.

The use of 0x60 (grave accent) as a special control character in
the Unix shell (to denote command substitution as in
`command` or better $(command)), in Perl, in
Lisp, or in TeX/troff (to denote a proper left single quotation mark)
does not have to be changed and remains unaffected. Donald Knuth’s TeXbook
(chapter 2, page 3, end of second paragraph) has actually warned TeX
users already since 1986 that the apostrophe and grave accent shapes
can show up as required by ISO and Unicode and not as used in the rest
of the TeXbook. The Unix m4 macro processor is probably the only
widely used tool that uses the `quote’ combination as part of its
input syntax; however, even that could be modified via
changequote.

Why should we fix this?

There are quite a number of reasons, why the old X fonts had to be
fixed, and with them the associated ASCII backquote practice:

• Obviously, grave accent and acute accent have to be mutually
  symmetric, which was not the case in the old X fonts.

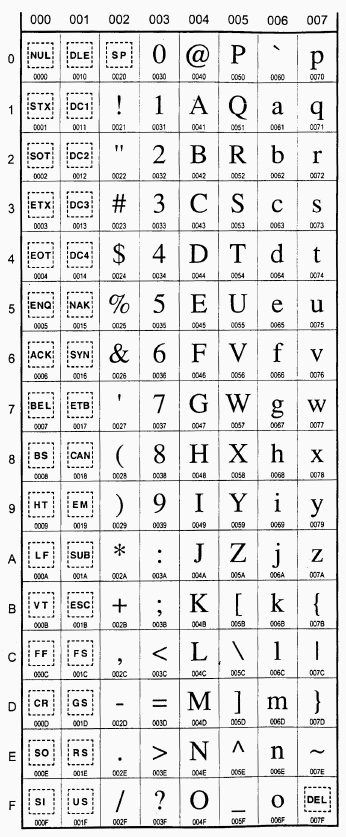

• The Unicode
  4.0 standard says explicitly that U+0027 be a “neutral (vertical)
  glyph having mixed usage” and shows the entire ASCII section like
  this:



• The ISO 10646, ISO
  8859 and ISO 646/ECMA-6
  standards also show the vertical typewriter apostrophe for U+0027 and
  have U+0060 and U+00B4 as mutually symmetric accents.

• The code table in ANSI X3.4:1986 (“ASCII”), which has been printed
  using the OCR-B font, also shows the vertical typewriter apostrophe.

  Historically, the originally proposed use of 0x60 in the
  international 7-bit coded character set was as a grave accent (ISO TC
  97/SC 2 meeting, October 29-31, 1963), and only later its meaning was
  extended in the US implementation of the standard to also cover the
  use as a left single quotation mark (CACM 8(4)207-214,
  1965).
• Most European keyboards have keycap labels for the apostrophe and
  both accents. These have always looked like in the ISO and Unicode

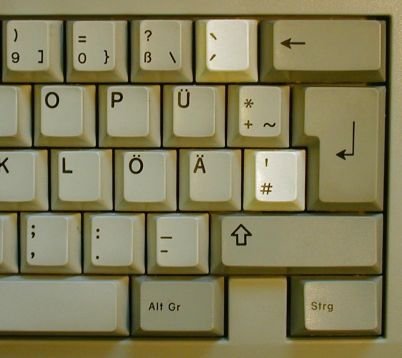

  standards. The photo below shows the relevant keys highlighted on a
  standard German PC keyboard, which has the acute/grave accent key left
  and the number-sign/apostrophe key below the backspace key:



  It can cause quite some confusion for users, if the keycap labels
  and the glyph shapes in the fonts disagree, as they did in the old X
  fonts.

• Microsoft and Apple fonts also follow the modern standards and
  disagree with the old X fonts. X11 users really should not be mislead
  about how the characters they use will appear on other standards
  conforming systems. Otherwise they will not realize that for example

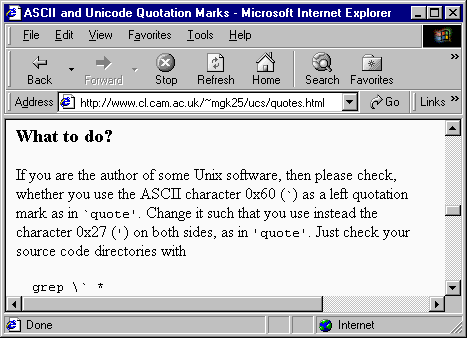

  every user of a Windows web browser (screenshot: Internet Explorer 5)
  sees “backquotes” as in



• Since XFree86 4.0 added TrueType font
  support, users of GNU/Linux systems have increasingly used
  modern fonts with the straight 0x27 glyph, and get
  funny quotation marks with older software that tries to do show
  directional quotation marks with ASCII (most notably various GNU packages).

• The characters 0x27 (apostrophe) and 0x22 (quotation mark) are
  often used to abbreviate minutes and seconds or feet and inches, which
  is yet another reason, why 0x27 should just be a single-stroke version
  of 0x22, and not a curly directional quotation mark.

Updated X Window System core BDF
fonts have been available since 1998, in which the apostrophe and
grave accent are now corrected, along with a number of other bugs.
They replaced the old fonts in XFree86 since version 4.0 and in the
X.Org sample implementation since X11R6.8.

Related hints

PostScript

PostScript has a somewhat complicated history of how it maps the
ASCII bytes to glyphs. In PostScript fonts, each glyph is identified
not by a code position, but by a glyph name such as
“quotesingle”. After the publication of the Unicode Standard, Adobe
released an official PostScript
Glyph Name to Unicode Mapping table. When a PostScript interpreter
displays text, it uses an encoding vector to map the 8-bit
byte values found in text strings onto the glyph names found in fonts.

PostScript provides several predefined 8-bit encoding vectors.
Authors of printer drivers can easily add their own. As the above
table shows, the original PostScript
standard encoding followed a practice similar to the old X fonts,
with all its problems, namely it mapped the ASCII bytes 0x60 and 0x27
to curly opening and closing quotation marks (“quoteleft” and
“quoteright” in PostScript glyph-name terminology, or U+2018 and
U+2019 in Unicode).

When ISO 8859-1 emerged, Adobe added to PostScript another
predefined encoding vector called ISOLatin1Encoding. This
was meant to be ISO 8859-1 compatible, but it remained at 0x60 and
0x27 unchanged from the old StandardEncoding vector, and
therefore it does not actually print the ISO 8859-1 characters 0x27
and 0x60 correctly, which correspond to Unicode characters U+0027 and
U+0060 and should be represented by the PostScript glyphs “grave” and
“quotesingle”. The authors of Adobe’s PostScript
Language Reference, Third Edition (Addison-Wesley, ISBN
0-201-37922-8) acknowledge this in section E.5, footnote 3, page 783,
where they note that the “ISOLatin1Encoding encoding
vector deviates from the ISO 8859-1 standard” and that an application
that wants to “conform exactly to the ISO standard should create a
modified encoding vector”. The newer CE encoding vector (Central
European, matching Windows CP1250), which is now also described in the
PostScript Language Reference, correctly maps 0x27 to “quotesingle”
and 0x60 to “grave”.

If you write a PostScript driver, please use the official Unicode
to PostScript mapping table to map ASCII, ISO 8859 and ISO 10646
characters to PostScript glyphs, as the updated Type 1 renderer in
XFree86 4.0 does. Do not use the ISOLatin1Encoding
encoding vector to print ISO 8859-1 text, without changing it first to
map 0x27 to “quotesingle” and 0x60 to “grave”. (In addition, you may
also want to map 0x2D = HYPHEN-MINUS to the PostScript glyph “hyphen”
instead of the “minus” mapping used by
ISOLatin1Encoding).

TeX

The font cmtt10 in TeX’s Computer Modern family
follows the example of the PostScript standard encoding by providing a
straight double quotation mark and directional single quotation marks
on the ASCII positions 0x22, 0x60, and 0x27. It also provides a
straight single quotation mark, grave accent, and acute accent on code
positions 0x0d, 0x12, and 0x13, respectively, but it lacks directional
double quotation marks:

Therefore, to demonstrate the result of abusing ASCII’s straight
quotation mark and graph accent as directional quotation marks in a
document written in LaTeX, you can write \texttt💬. The non-typewriter fonts in Computer Modern
lack both single and double straight quotation marks.

Use LaTeX’s upquote package (\usepackage💬)
to map in the verbatim modes the ASCII characters 0x27 and 0x60 to the
correct glyphs.

References

• Michael Everson: On the apostrophe
  and quotation mark, with a note on Egyptian transliteration
  characters, Working Group Document ISO/IEC JTC1/SC2/WG2 N2043,
  1999-07-24

• Adobe: Unicode and Glyph Names, 1997–2003.
• UTF-8 and
  Unicode FAQ for Unix/Linux

• Unicode
  fonts and tools for X11

• Bruno Haible explains how to
  output nice Unicode quotation marks in a portable way using GNU
  gettext.

• The
  Unicode Standard, Version 4.0, Addison-Wesley, 2003, ISBN
  0321185781.

• Jukka Korpela: Character
  histories: notes on some ASCII code positions.

• Markus Kuhn: Apostrophe and acute accent
  confusion. This is a page on the frequent error of misusing the
  U+00B4 or U+0060 acute and grave accent as an apostrophe instead of
  the appropriate apostrophe character U+0027 or better U+2019. This is
  today a frequent mistake, made by users of German, Swedish, Spanish
  and other PC keyboards, where the acute accent key is easier to reach
  than the (shifted) apostrophe key. The acute/grave key should always
  be non-spacing, to make it less likely that it is misused for entering
  wrong apostrophes.

• David A. Wheeler: Curling
  Quotes in HTML, SGML, and XML.
